PROFILE MEASUREMENT

Reliable Profile Measurement Systems for Quality Products


Famous companies like Continental, Behr GmbH & Co., Vredestein Banden, Deutsche Rockwool GmbH and ARUP are only a selection of quality sensitive companies we delivering our profile scanners to.

All systems have one common feature: They are working reliable, with low maintenance and are always in best way adapted to the product and the production machine.

The outstanding high quality standard of all systems of the Kurschat GmbH is the result of a long term experience in many different industries. Flexible and creative ideas for the solution of special measuring tasks in continuous cooperation with our partner: our customer.

Overview of our profile measuremen systems:

  • Online laser profilometer for tread and sidewall
  • Offline laser profilometer for tread and sidewall
  • Profile measurement of complex endless profiles
  • Profile measurement of flat tubes

Let us discuss your specific measurement requirements. Contact us!


Online Laser Profilometer for Tread and Sidewall

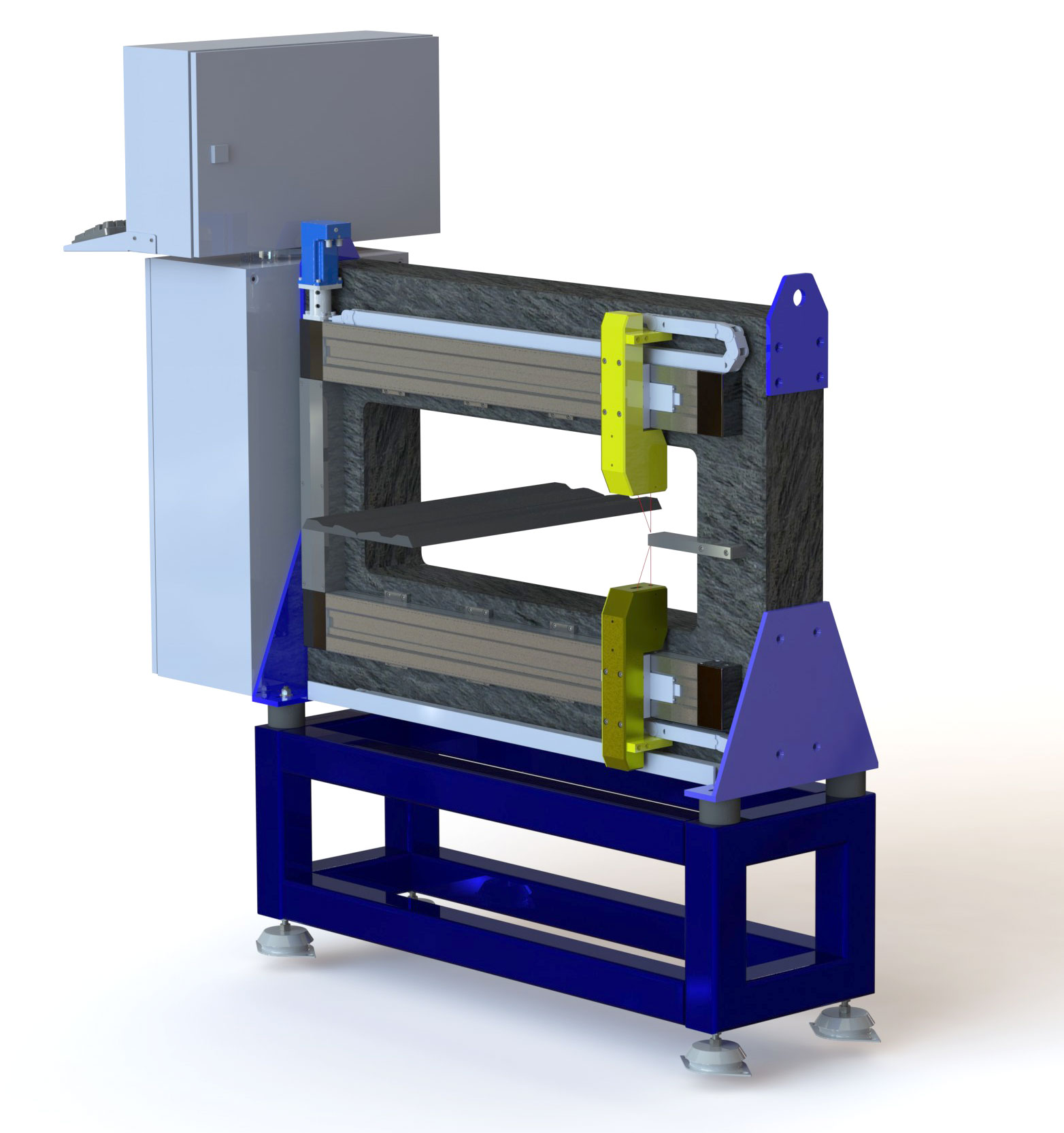

KScan Granite

  • Massive granite O-frame with traversing singlepoint laser sensors
  • In-Situ calibration
  • TEMPerformance function with integrated temperature control
  • Measurement accuracy:< 0.020 mm
  • Scanning speed up to 300 mm/s

KScan Laser Caliper

  • Traversing laser triangulation sensors in C-frame
  • In-Situ calibration
  • TEMPerformance function with integrated temperature control
  • Measurement accuracy:< 0.020 mm
  • Scanning speed up to 150 mm/s

Offline Laser Profilometer for Tread and Sidewall

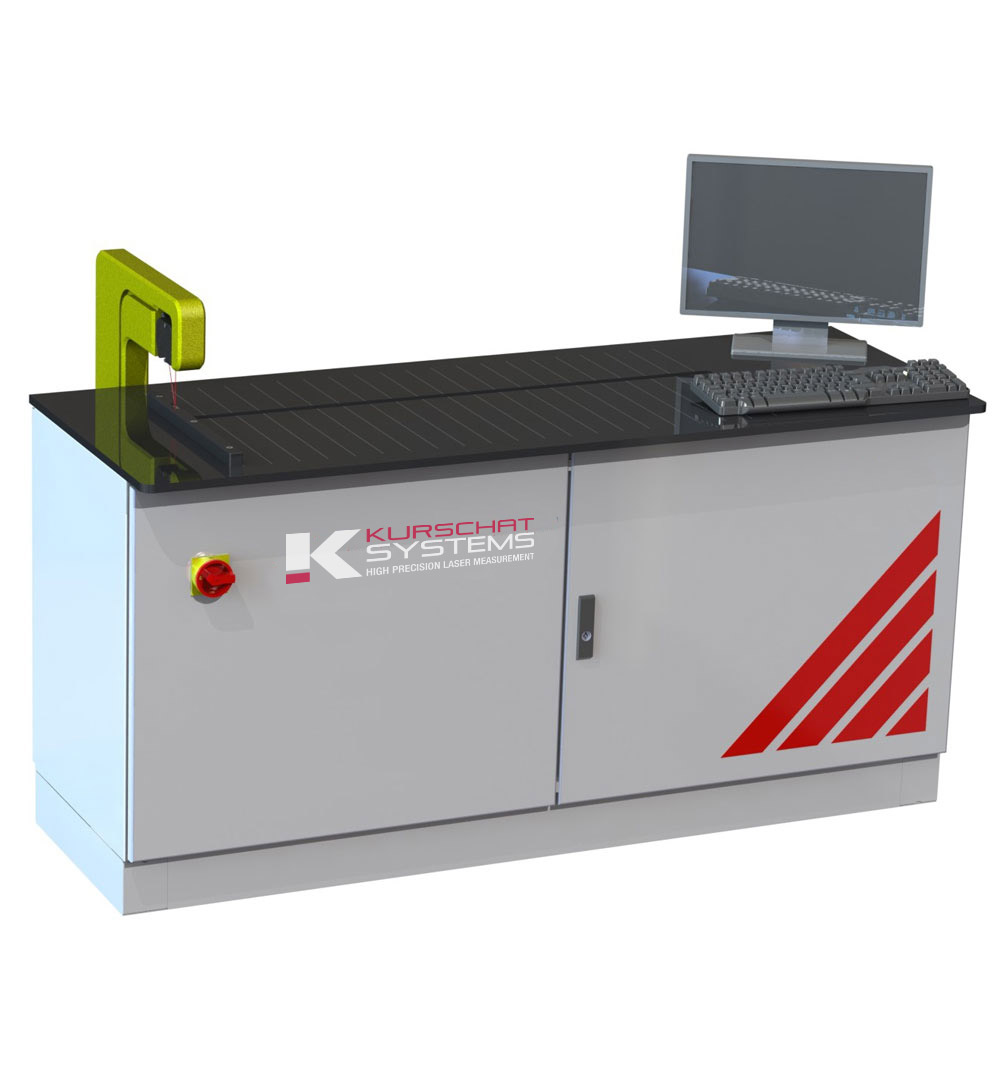

KScan Offline

  • Stand-alone unit with traversing singlepoint laser sensors
  • Scanning C-frame laser calliper
  • In-Situ calibration
  • TEMPerformance function
  • Measurement accuracy: typical 0,010 mm
  • Scanning speed up to 150 mm/s

Profile measurement of flat tubes

KµScan

  • Traversing system with C-frame for high precision, non-contact thickness and profile measurement of flat tubes
  • Highly robust thanks to thermal stabile granite design with maximum self-damping
  • Innovative air bearing for maximum smoothness during the traversal
  • Accuracy starting at 1µm, integrated online calibration
  • Customized laser sensors adapted to the application, especially for difficult surfaces
  • Devices for different geometries
