MEASUREMENT TECHNOLOGY FOR RUBBER APPLICATIONS
Kurschat offers a number of measurement solutions for the monitoring of production processes of rubber extrusion of profiles, such as sealing profiles, treads, side stripes, inserts, etc.. For the production of rolls, such as e.g. roofing membranes, inner liner, corduroy etc. products thickness measurement systems are used. All systems document the measurement results over time or the meter and are ready for implementation in the corresponding loops.
KScan Granite - Profile Measurement System
KCross plus
- Traversing laser- thickness measurement for extruded/ calendared web material
- Compact welded steel-O-frame
- Steel frame with thermal insulation and cooling unit
- Integrated in-situ calibration
- Measurement width: 900…> 3.200 mm
- Accuracy: typical < 0.020 mm
- Thickness range: 20 /35 / 50 mm

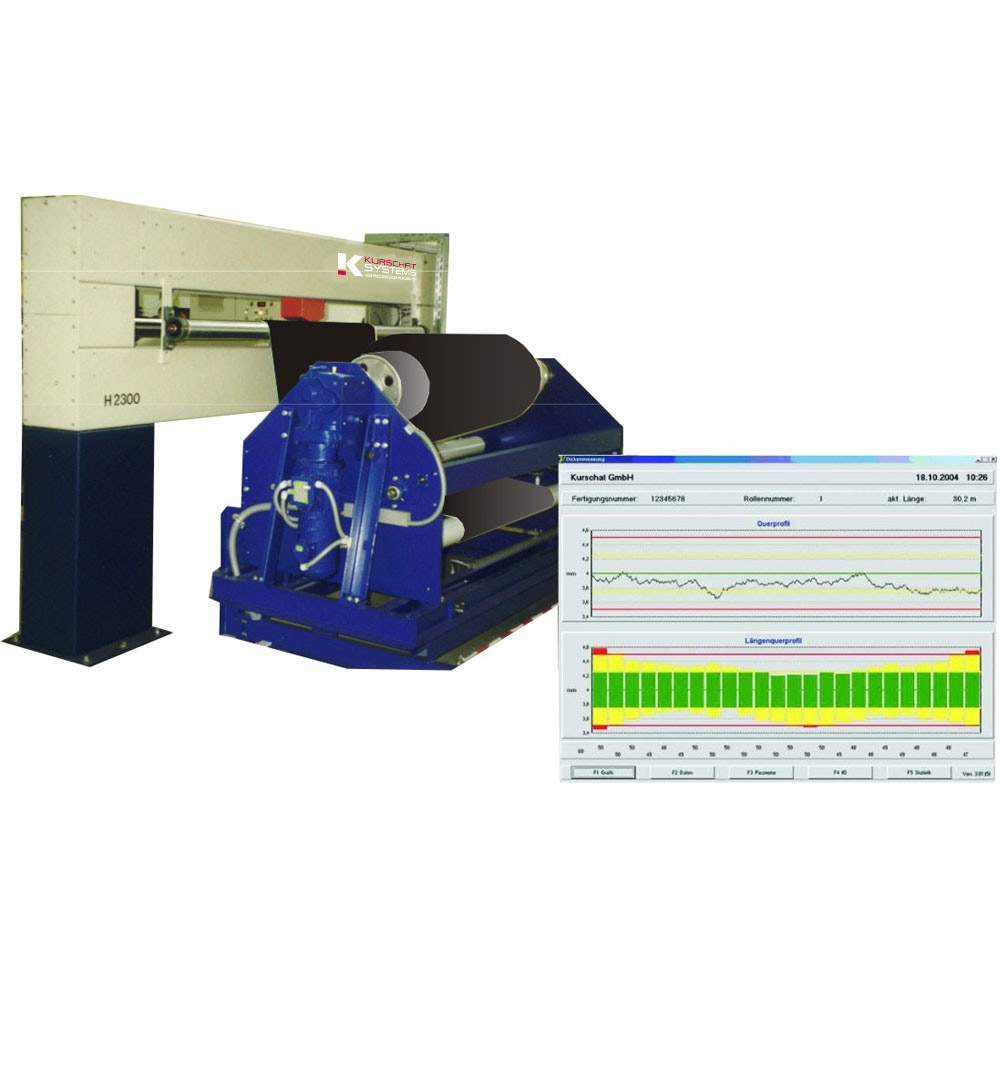

KCross
KCross
- Traversing laser- thickness measurement for extruded/ calendared web material
- Compact welded steel-O-frame
- Steel frame with thermal insulation and cooling unit
- Integrated in-situ calibration
- Measurement width: 900…> 3.200 mm
- Accuracy: typical < 0.020 mm
- Thickness range: 20 /35 / 50 mm
KFrame
KFrame
- Continuous three tracks laser- thickness measurement for extruded/ calendared web material
- Variable measurement positions
- Integrated in-situ calibration during production/ material transport
- Motorized conveyor rolls
- Accuracy: typical 0.010 mm
- Thickness range: 20 /35 / 50 mm
KFrame economy
KFrame economy
μ-accurate profile measurement with traversing Granite C-frame with air bearing technology. Designed for profile measurement of wiper blades.

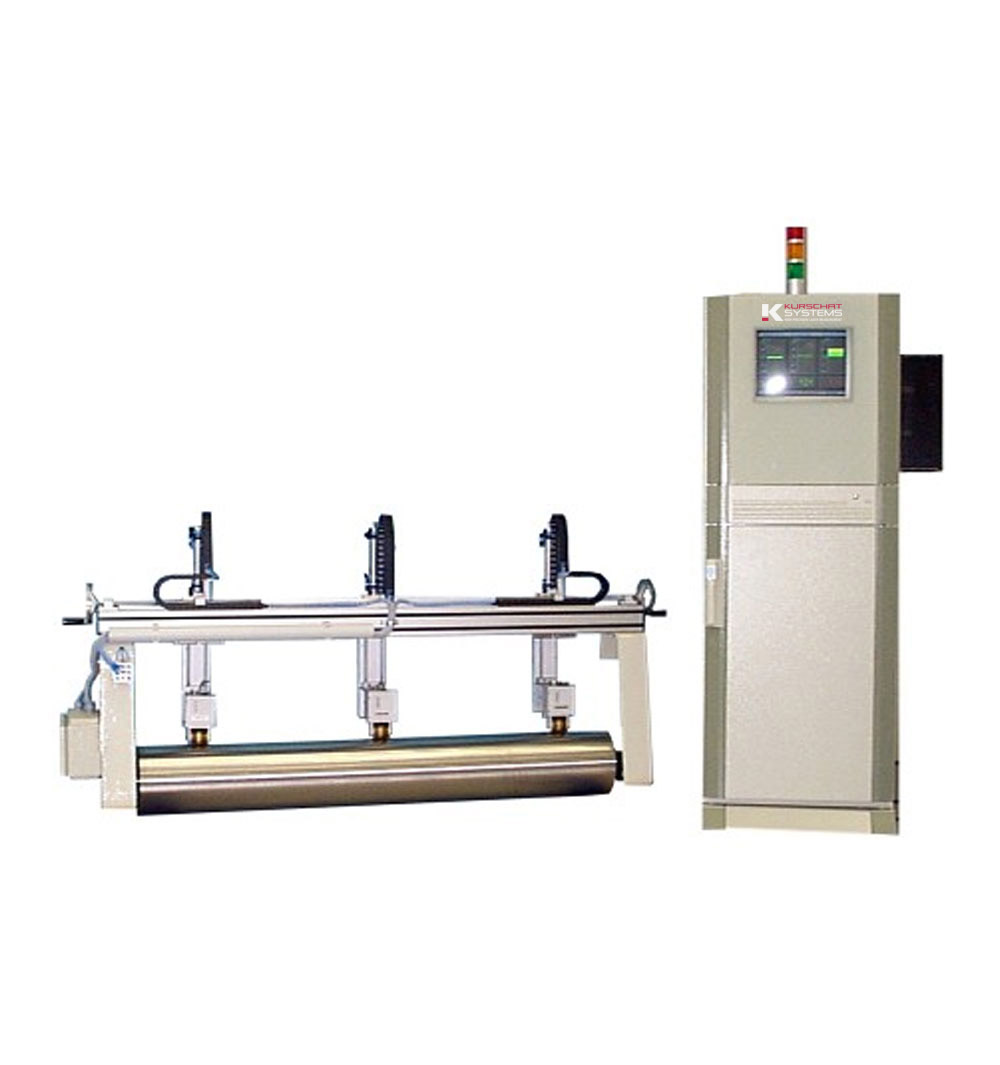

KFrame contact
KFrame contact
- Contact thickness measurement against reference roller
- Manual adjustable measurement positions
- Accuracy: typical 0.020 mm plus concentricity error of roller
- Thickness range: 4/ 8 mm
